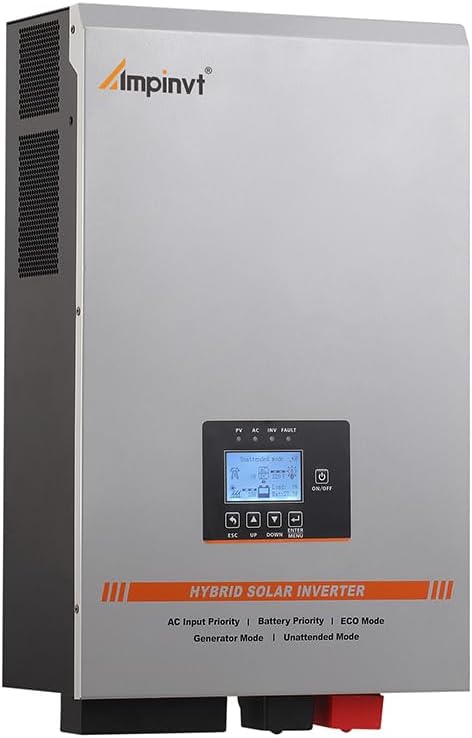

Ampinvt 6000W Solar Inverter 48V DC to 120V/240V AC Split Phase Output, Built-in 100A MPPT Solar Controller, Off Grid Low Frequency Pure sine Wave Inverter Charger, for Lead Acid Lithium Gel Battery
$875.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by makeamericaplaidagain.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$875.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by makeamericaplaidagain.com
Free 30-day returns Details
Product details
| Management number | 214765119 | Release Date | 2026/04/12 | List Price | $350.00 | Model Number | 214765119 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- This Pure Sine Wave Solar Inverter is a combination of an inverter, ac battery charger , MPPT solar charge controller and AC auto-transfer switch. High transfer efficiency is above 85%, built-in AVR stabilizer, complete isolate surge interference of input & output's voltage and current, Impact resistance super load capacity, continuous stable pure sine wave output. Available at 240Vac (HOT1+HOT2) and 120/240Vac output at the same time.
- The max charge current can be adjusted from 0-35A, Setting the value to 0A will turn off the charging function.
- Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection. 110%-120% of the output was maintained for 30s, then the output turned to bypass, more than 160% maintained the 300ms
- MPPT controller with high tracking efficiency of up to 98% can charge 48V lead-acid batteries (Seal, AGM, Gel, Flooded), LiFePO4 batteries and lithium batteries(User Mode) from solar panels, the grid, or a generator. PV Array Power is 5600W and the MAX PV input voltage is 150V DC
- Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection. 110%-120% of the output was maintained for 30s, then the output turned to bypass, more than 160% maintained the 300ms.
| Brand | AMPINVT |
|---|---|
| Color | Silver |
| Voltage | 48 Volts |
| Wattage | 6000 watts |
| Frequency | 60 Hz |
| Model Name | TG-60248M100 |
| Unit Count | 1.0 Count |
| Item Weight | 78 Pounds |
| Manufacturer | Top one power |
| Model Number | 48V6000W100A |
| Output Power | 6000 Watts |
| Power Source | Battery Powered |
| Input Voltage | 48 Volts (DC) |
| Output Voltage | 120 Volts (AC) |
| Mfr Part Number | TG-60248M100 |
| Antenna Location | Home, Office |
| Warranty Description | 1 year |
| Peak Output Power Watts | 7000 |
| Item Dimensions L x W x H | 14.2"L x 6.9"W x 20"H |
| Electrical Output Waveform | Pure Sine Wave |
