2in Digital Oil Temperature Gauge, 361-19Ohm, 50-150℃, 8 Colors Backlight, IP67 Waterproof - Stepper Motor Accuracy, Durable Stainless Steel Bezel, Suitable for Vehicle and

Item Type: Oil Temperature GaugeMaterial: Stainless Steel 316L Bezel + Anti-Fog GlassColor: White Dial Silver Bezel Functions: Display current Oil TempOperation Mode: Stepper MotorInstallation Diameter: Approx. 52mm/2inWorking Volt: 9-32V(12V/24V)Signal: 361-19ohmRange: 50-150℃Operating Temperature: -30℃-+75℃Storage Temperature: -40℃-+85℃Protection Class: IP67,can work underwater 1m positionBacklight: 8 Colors: red, green, blue, white, yellow, olivine, orange, purple, totally 8 kinds different backlight color,it will change automatically every 1 minute,or you can fix only one color that you like through press the gauge back ''set'' buttonHow to Use: Fix the meter on the instrument panel and connect the power cordWiring:The red wire is connected to the positive poleThe blue wire is connected to the negative poleThe black wire is connected to the sensorThe orange wire is connected to backlightInstallation Notes:1. Cut a hole 52mm in diameter in the panel (your engine room panel and instrument panel) and insert the meter into the hole corresponding to the panel marked with a and make a small notch in this position to ensure at least 52mm (2in) instrument panel on the back of the instrument.2. After installing the instrument into the panel, screw down with the fixing ring3. Connect the wires, the instrument shell is directly connected to the 12/24V power supply4. Insert the wire harness and fix it firmly on the tablePackage List：1 x Oil Temperature Gauge1 x Power Wire Harness1 x Manual

• [Multi-Color Backlight]: Features 8 vibrant backlight colors that automatically cycle every minute, or lock your favorite color for clear visibility in any lighting condition.
• [Durable Construction]: Crafted with a 316L stainless steel bezel and anti-fog curved glass, this oil temperature gauge offers superior resistance and clear display in harsh environments.
• [Wide Voltage Compatibility]: Operates reliably within a 9-32V range, supporting both 12V and 24V systems and can handle up to 36V for short intervals, ensuring stable performance.

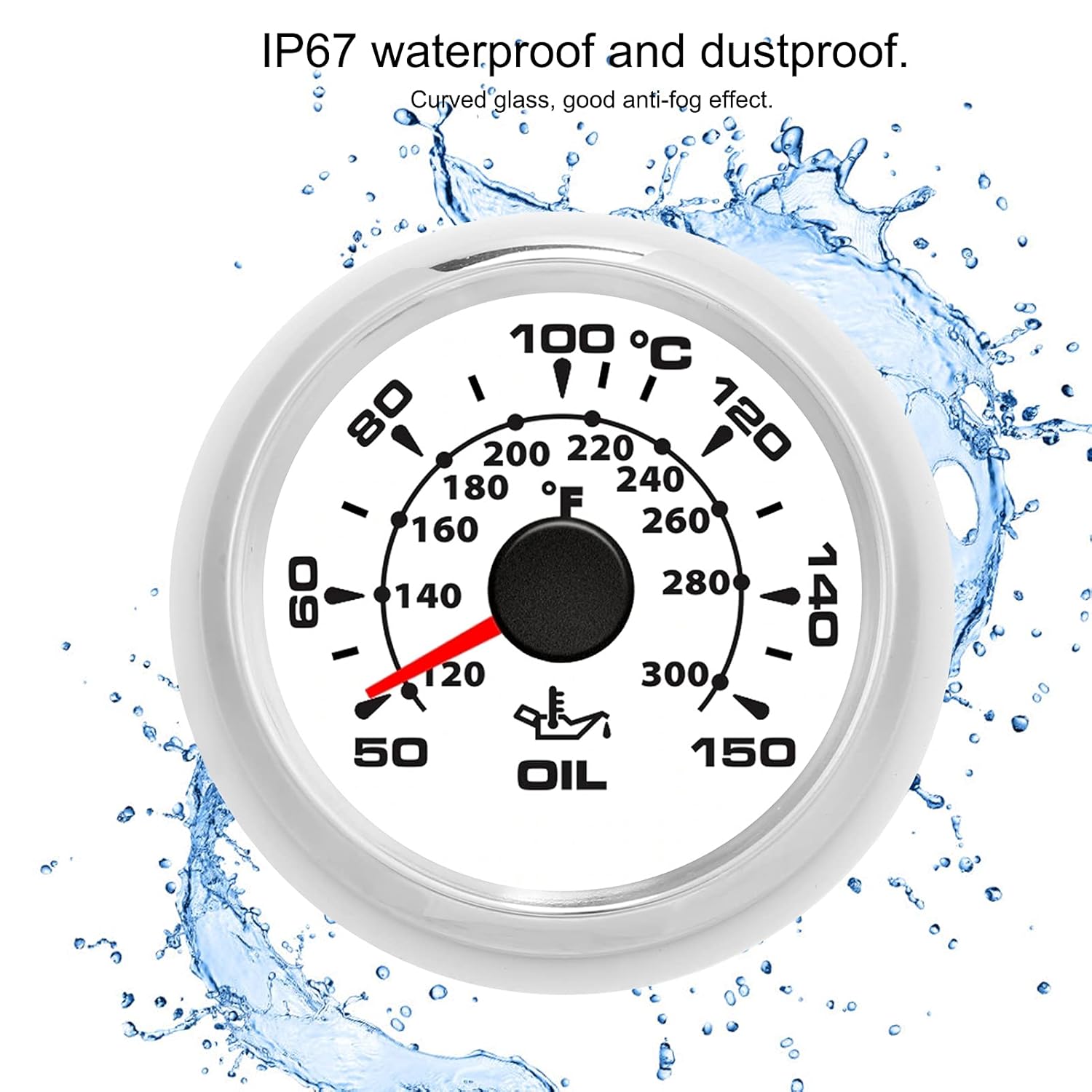

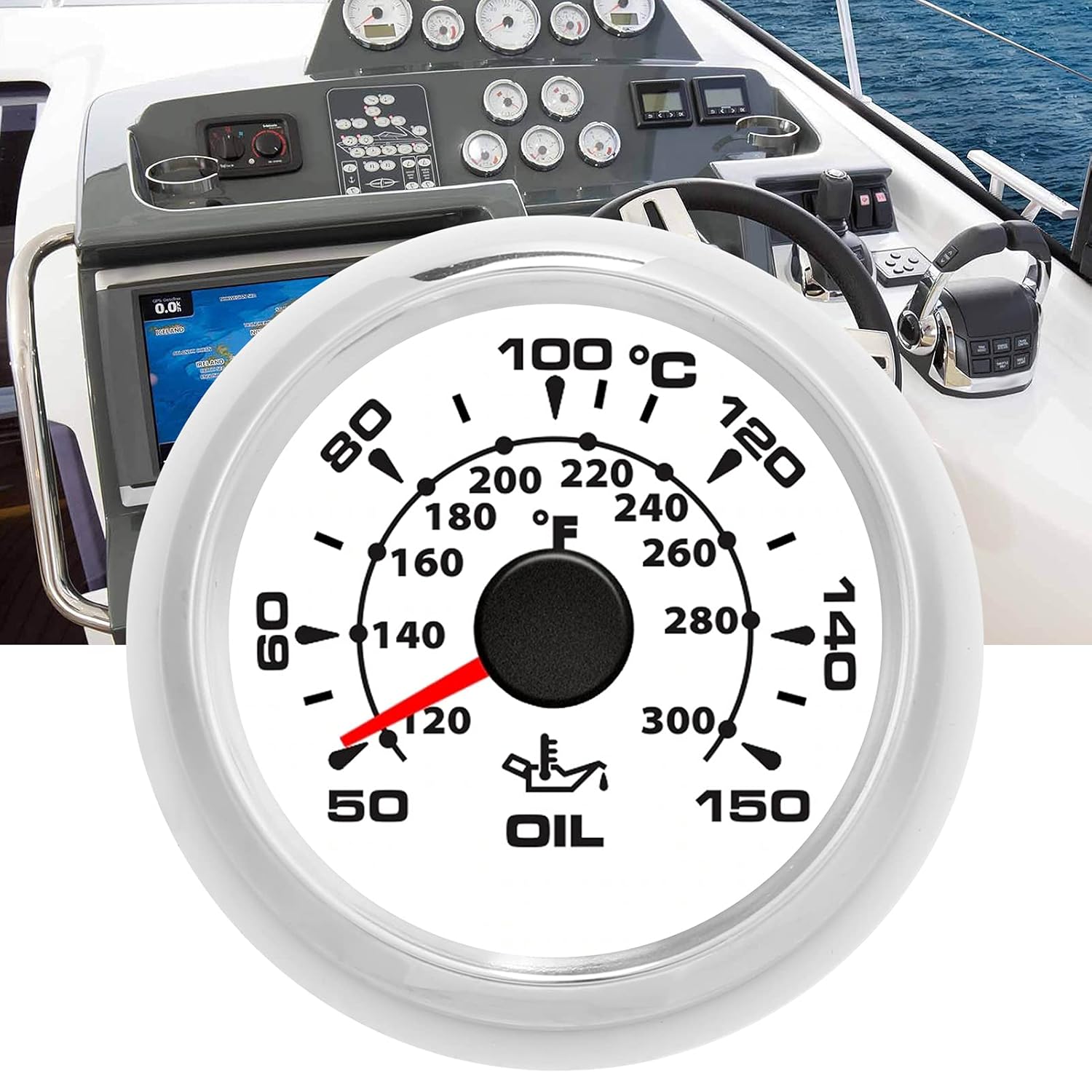

• [Waterproof and ]: IP67 rated housing protects the gauge from water immersion up to 1m and dust, making it ideal for marine, construction, and agricultural machinery applications.
• [Easy Installation and Secure Connection]: Includes snap-together harness connector to maintain normal operation under vibrations, perfect for engine panels, generator sets, and automotive modifications.
